FM80 · FM98 · FM120
Global-Mark electrical safety certificate
GMA-518139-EA
- Issuer
- Global-Mark Pty Ltd
- Issued
PRODUCT SUPPORT
Know your
grinder.
Plan your counter space, understand the power supply and find support for your FM grinder.
Have these details ready.
For an existing grinder, include the model, serial number and a clear description of the question. For a new installation, describe your space, electrical supply and intended workload.
YODA · IN DETAIL

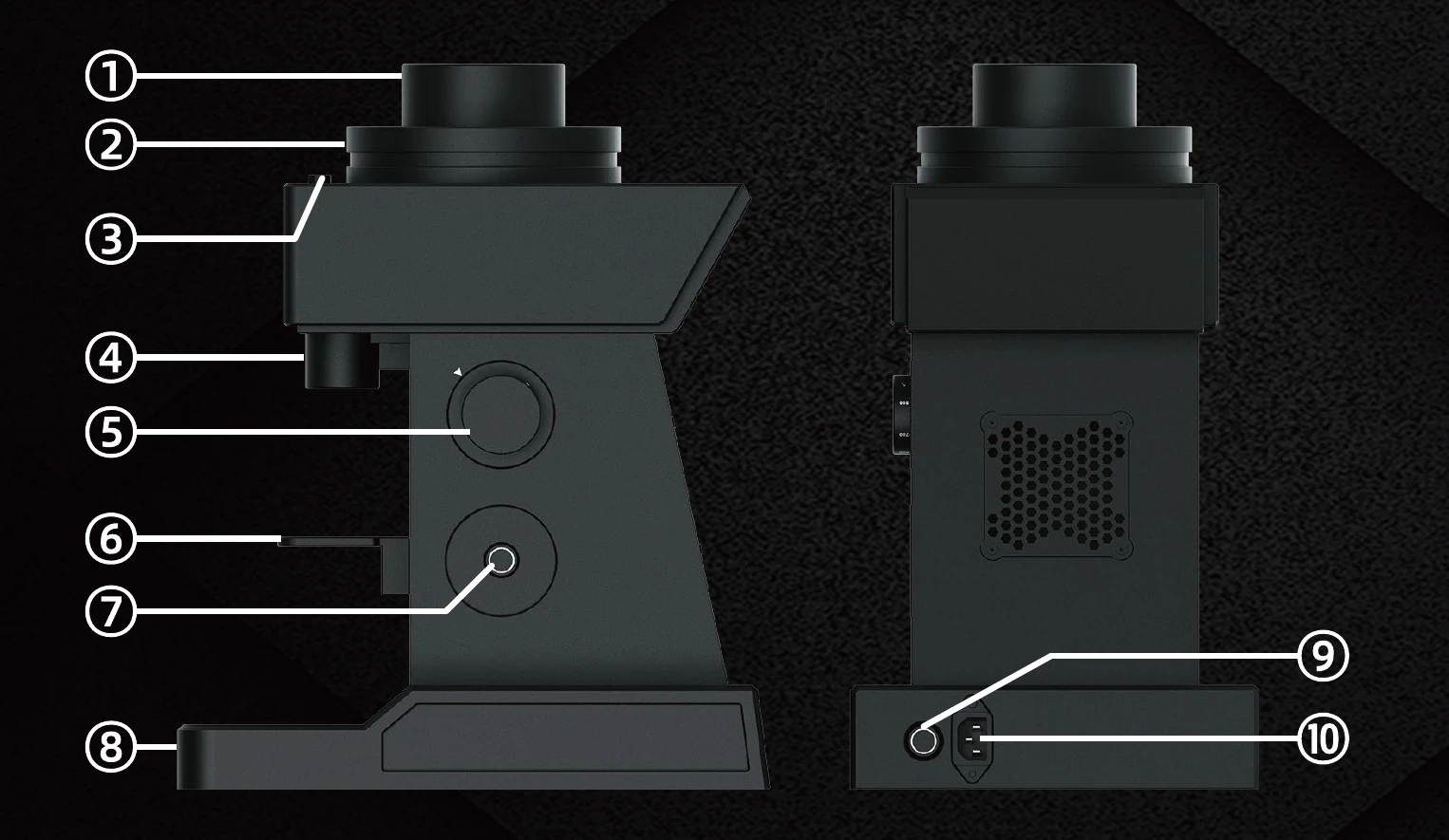

Know your YODA.
- Bean hopper
- Grind-adjustment dial
- Knock button
- Grounds outlet
- Speed-control knob
- Dosing-cup support
- Power switch
- Grounds collection tray
- Ioniser switch
- Power inlet
FM · DOCUMENTS
Details, documented.
Find EMC, RoHS and electrical safety documents for FM80, FM98 and FM120. Choose by model and electrical rating.
FM80 · FM98 · FM120
EMC compliance document
XKS2023R09210109
- Issuer
- Shenzhen Xunke Standard Technology Service Co., Ltd.
- Issued
FM80 · FM98 · FM120
RoHS compliance document
XKS2023R09210110
- Issuer
- Shenzhen Xunke Standard Technology Service Co., Ltd.
- Issued
FM · USE & CARE
A considered routine.
Start with your model for everyday operation and care.
FM98 / FM120 use and care
- Use a grounded socket. Fill the hopper, place a cup under the outlet, start the grinder and open the bean-release handle. Switch off before removing the cup.
- Turn the grind adjustment dial clockwise for a finer grind and counterclockwise for a coarser grind. Make small adjustments and test with a little coffee.
- Turn the speed knob clockwise to increase speed and counterclockwise to reduce it.
- Disconnect the power before cleaning or maintenance. Ask your seller for daily maintenance and burr-calibration videos. Leave repairs to a professional and use original parts.
FM180 use and care
- Use a grounded socket. Add coffee beans, place a container under the outlet, start the grinder and open the bean-release handle. Switch off before removing the container.
- Turn the grind adjustment dial clockwise for a finer grind and counterclockwise for a coarser grind. Adjust gradually and check the result with a little coffee.
- Turn the speed knob clockwise to increase speed and counterclockwise to reduce it.
- Disconnect the power before cleaning or maintenance. Contact your seller for maintenance and burr-calibration videos. Use original parts and have repairs carried out by a professional.
YODA 100 use and care
- Use a grounded socket. Remove the inlet bellows before adding beans, and place the cup on its holder. Start with the power switch, then switch off before removing the cup.
- Use the grind adjustment dial to choose a grind size for your coffee and brew method, then adjust after a test grind.
- Turn the speed knob clockwise to increase speed and counterclockwise to reduce it.
- Disconnect the power before cleaning or maintenance. Hold the plug body when unplugging; do not pull the cable. Ask your seller for maintenance and burr-calibration videos, and use professional service and original parts for repairs.
FM · INSIDE THE GRINDER
Every part has a place.
Use the drawing references to describe a part. Include your grinder’s model, serial number and a photo with your enquiry so the service team can match the component. For maintenance and repairs, contact FM support.

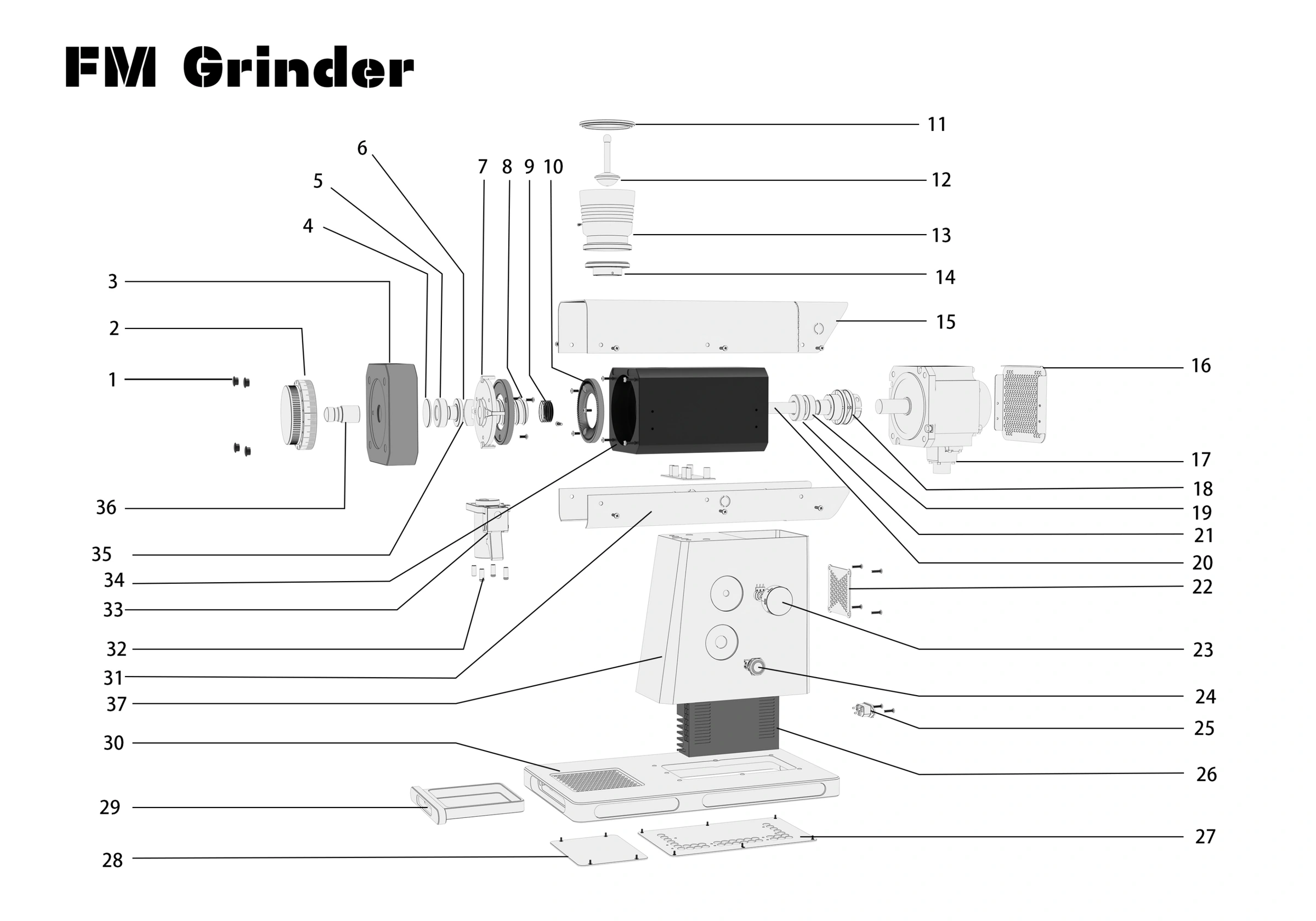

Flat-burr assembly
Full parts list PDF · 9.7 MBFind key parts in this drawing
Drawing reference
- 10
- Burr set
- 17
- Servo motor
- 23
- Speed controller
- 24
- Start / stop switch
- 25
- Main power socket
- 29
- Grounds drawer

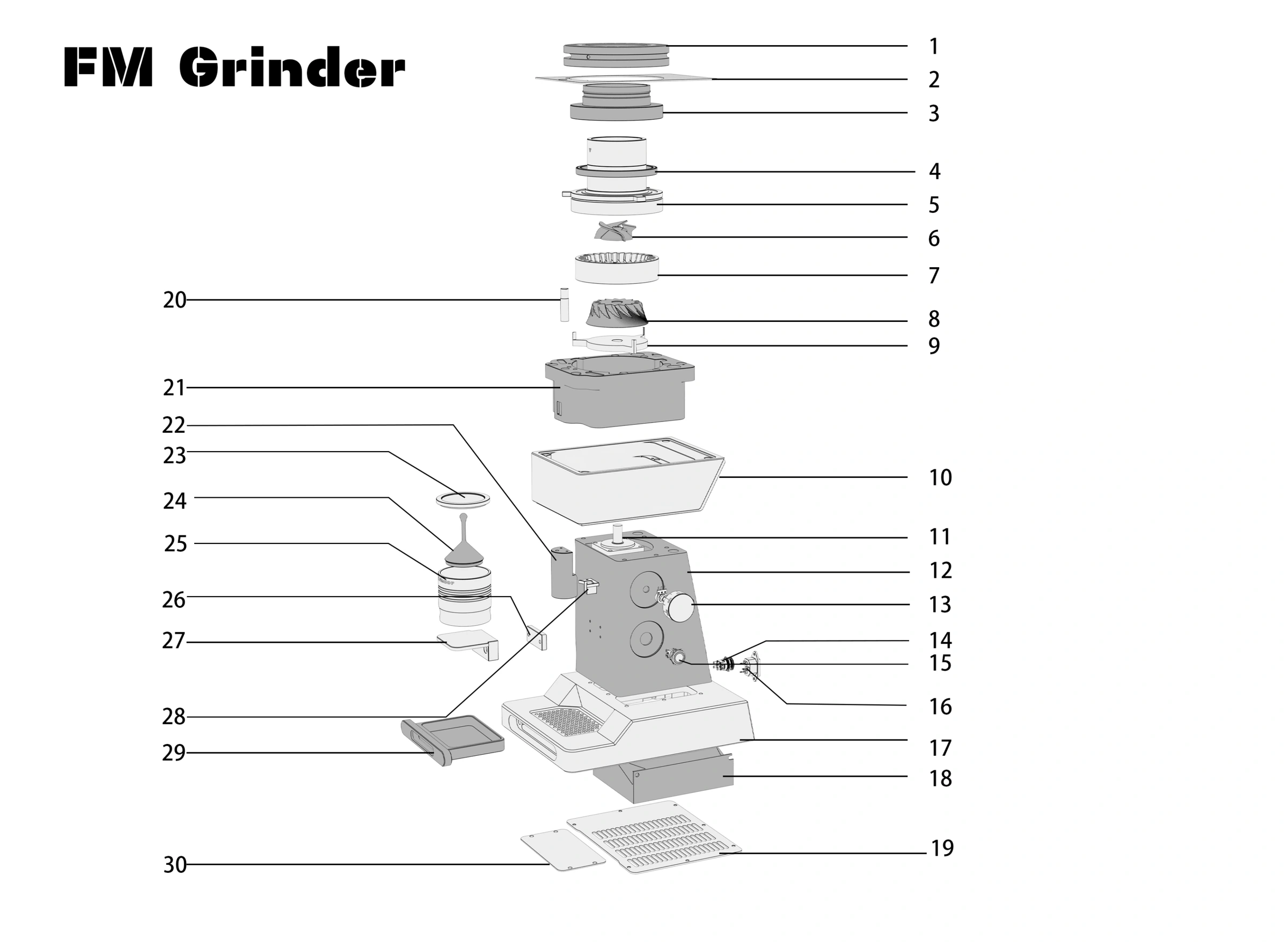

Conical-burr assembly
Full parts list PDF · 8.2 MBFind key parts in this drawing
Drawing reference
- 7
- Outer burr
- 8
- Inner burr
- 13
- Speed controller
- 14
- Ioniser switch
- 20
- Grounds knocker button
- 22
- Grounds discharge chute
BEFORE YOU DECIDE
Questions, answered.
Explore the details of choosing and using your FM grinder.
What power supply do FM grinders use?
The rated power supply is 220 V, 50/60 Hz. When enquiring, include the country where the grinder will be used and the site’s power supply so the sales team can advise on the electrical configuration. Use the voltage and frequency shown on the machine’s nameplate.
How much space should I plan for my grinder?
FM98 is 501.8 mm high. YODA 100 and YODA 120 measure 309.4 × 244 × 401 mm. Alongside the machine’s footprint, allow room to add beans, collect grounds and access the grinder for cleaning. Share your counter measurements and preferred model with the sales team when planning a new setup.
What warranty comes with an FM grinder?
FM grinders carry a one-year warranty for faults not caused by user damage; burrs are excluded. During the warranty period, the factory provides replacement parts and guidance videos to distributors or customers. Service after one year is chargeable. For help, have your model, serial number and purchase record ready.
What should I prepare before installing a commercial coffee grinder?
Measure the counter width, depth and overhead space, allowing access for filling, grounds collection and cleaning. Check the delivery route and choose a supporting surface suited to the equipment’s weight. Have a qualified installer check the electrical supply against the machine’s nameplate before connecting it.
What information helps with grinder servicing or spare-parts enquiries?
Include the model, serial number, nameplate photo, purchase date, seller and a description of the issue. A clear photo of the part or a short video can help explain what you are seeing. Only record the equipment when it is safe to do so, without opening the machine. Agree repair or return arrangements with your service contact before shipping.
How do I adjust the grinding speed on YODA 100 and YODA 120?
Use the speed-control knob on the front of the grinder. Turn clockwise to increase the speed and anticlockwise to reduce it. Both YODA 100 and YODA 120 have a 100–700 rpm range. Keep a record of your speed, grind setting and dose when refining a coffee recipe.
How should I prepare my YODA grinder for cleaning and maintenance?
Switch off the grinder and unplug it before cleaning or maintenance. Hold the plug itself when disconnecting it; do not pull the cable. Follow the operating instructions for your model. For routine maintenance and burr-zero calibration, contact your seller for the corresponding video guide. Have your model and serial number ready when asking for service or replacement parts.
Which compliance documents can I view for FM grinders?
EMC, RoHS and electrical safety documents are available for FM80, FM98 and FM120. The electrical safety document lists the 220–240 V, 50/60 Hz, 1000 W configuration. Choose documents by model and electrical rating.
Where can I find operating and care instructions for my FM grinder?
The use and care section covers FM98 and FM120, FM180 Commercial and Industrial, and YODA 100. Start with the guide for your model. For maintenance and replacement parts, contact the FM support team.
How can I identify a part for a service enquiry?
Use the reference numbers in the original FM flat-burr or conical assembly drawing to describe a part. Include your grinder’s model, serial number and a photo so the service team can match the component. Contact FM support for maintenance and repairs.
